Product Introduction

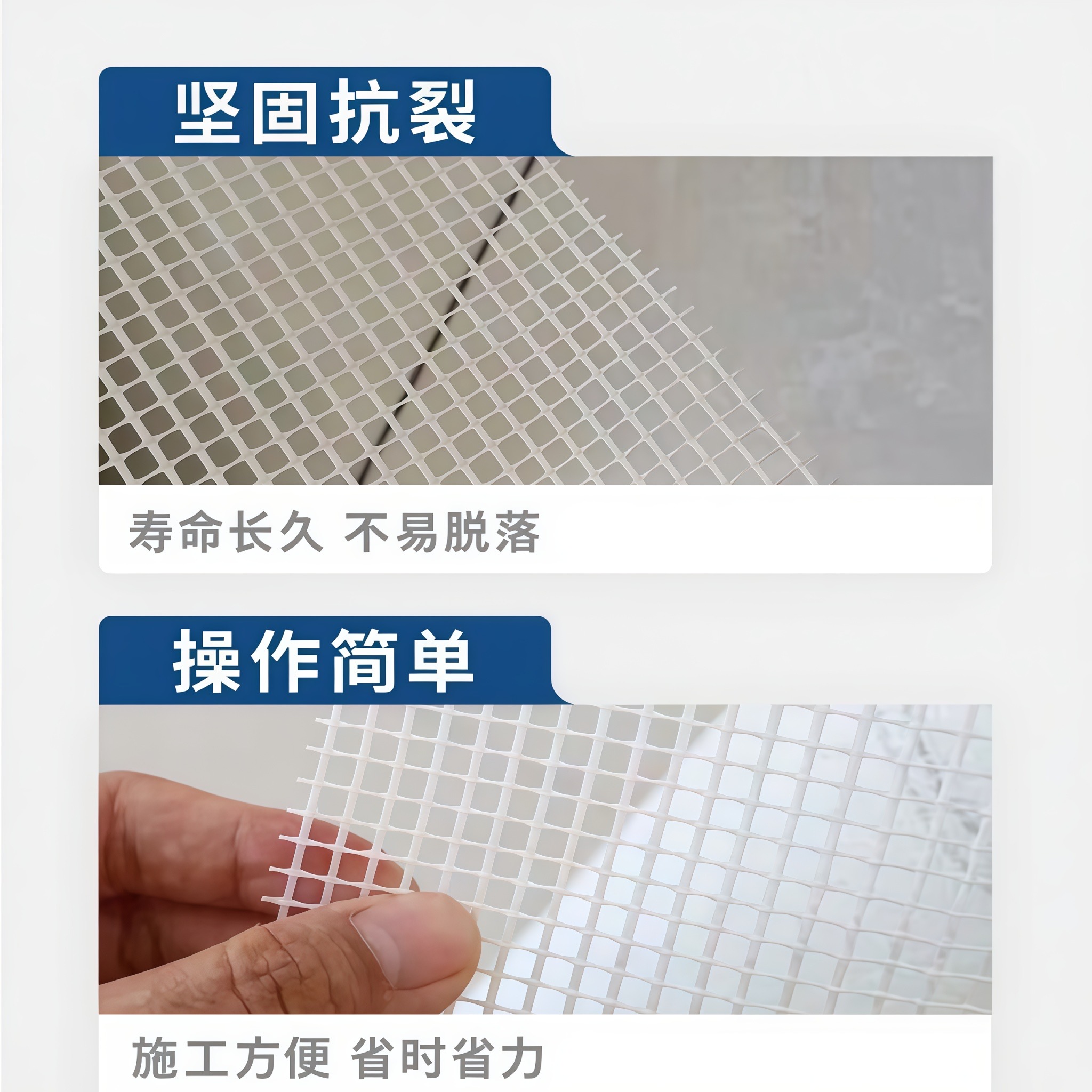

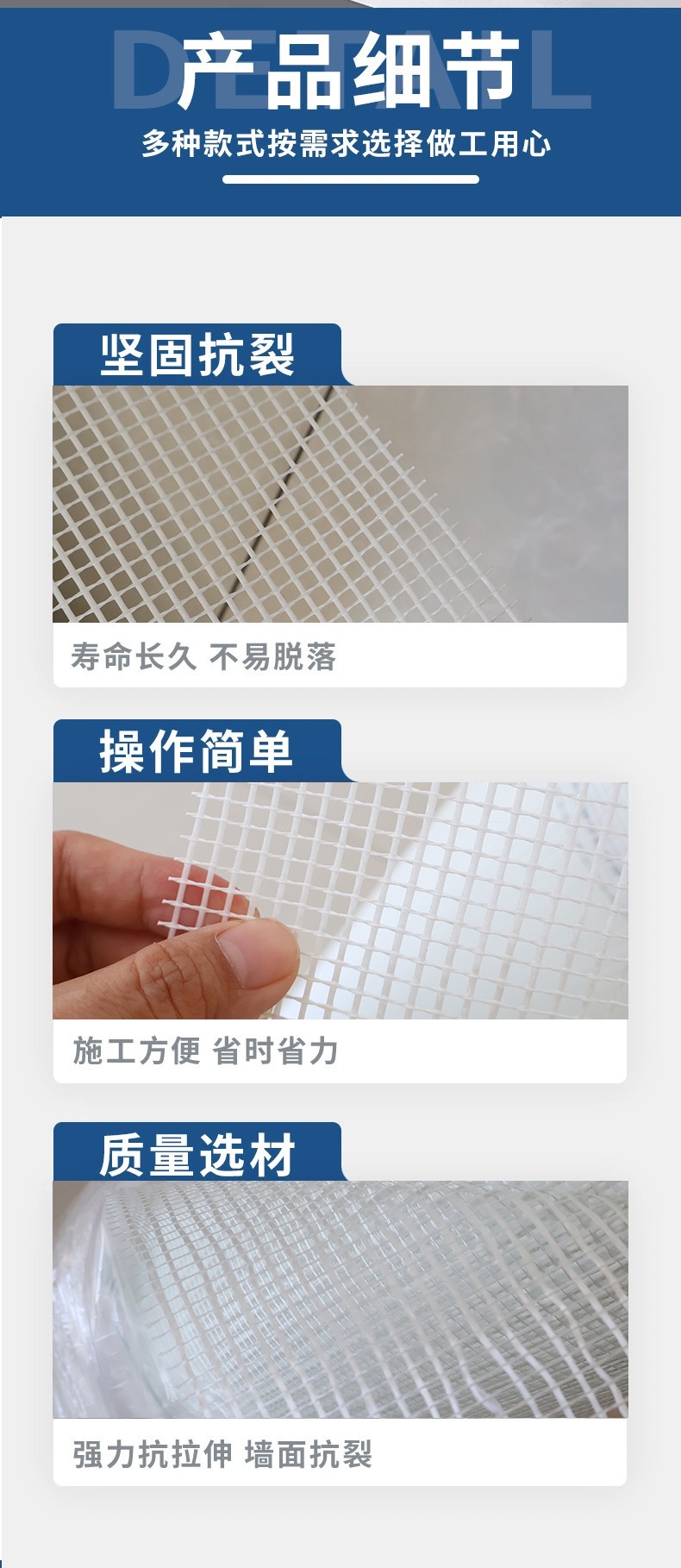

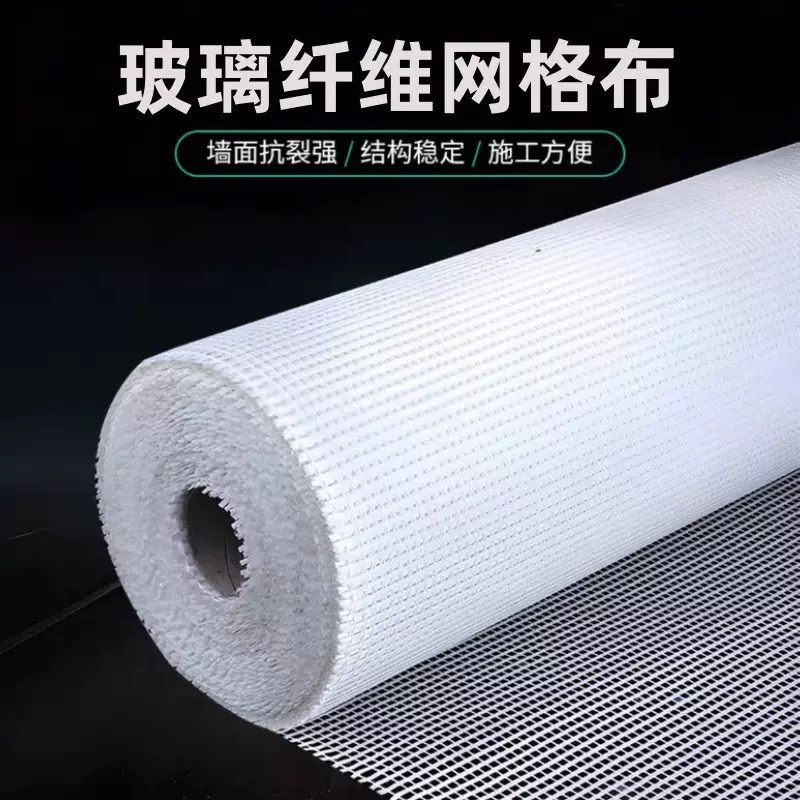

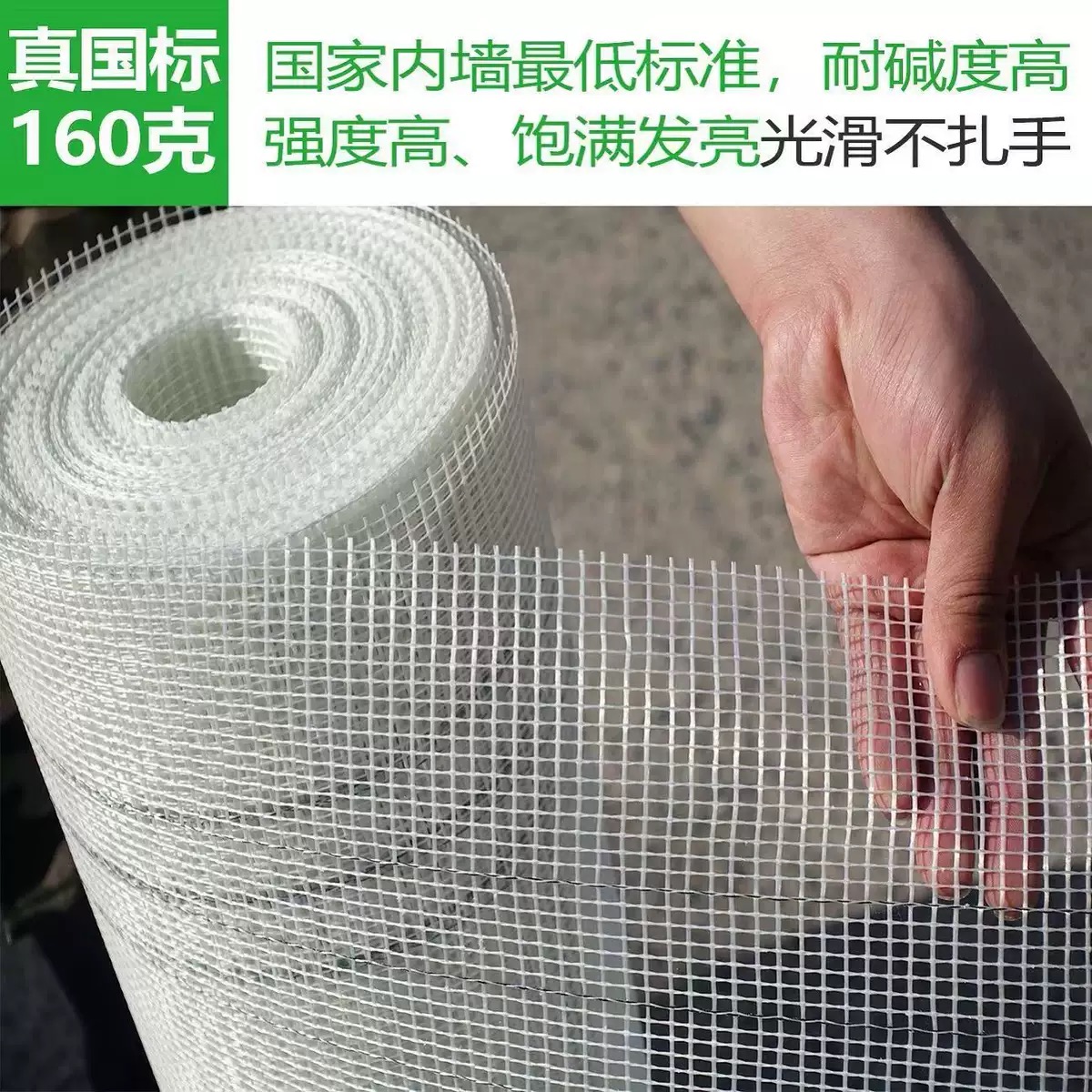

Alkali resistant glass fiber gridding cloth is made of glass fiber as the base material, which adopts medium and alkali free glass fiber yarn with special organizational structure, and is coated with acrylic acid lotion for drying and heat setting treatment, so as to have good alkali resistance, flexibility and high tensile resistance in warp and weft directions. Resistant to alkali, acid, and crack, with high tensile strength, excellent adhesion and positioning, and good resistance to chemical corrosion



Product application:

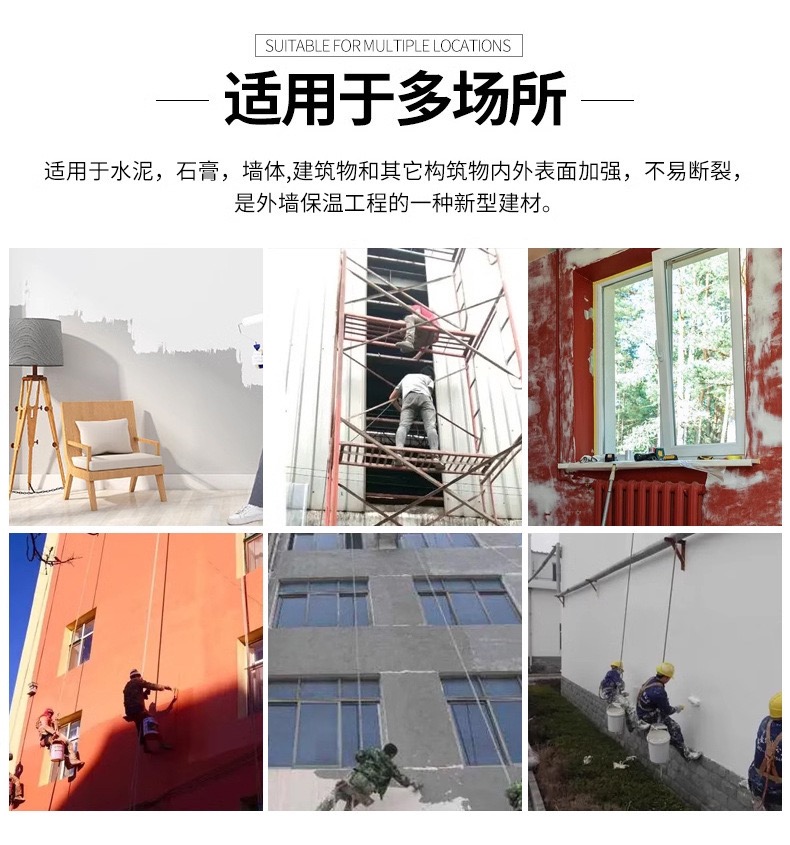

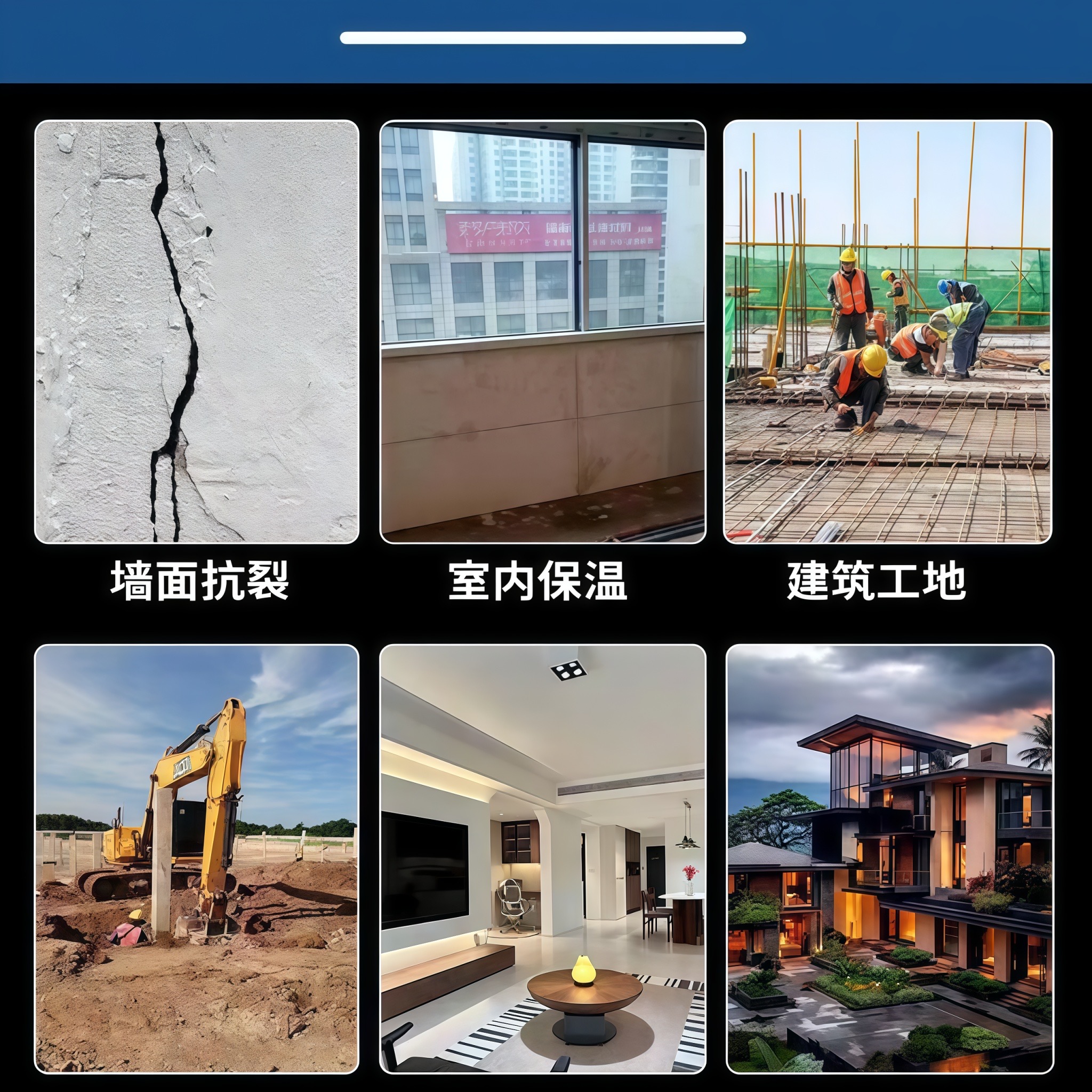

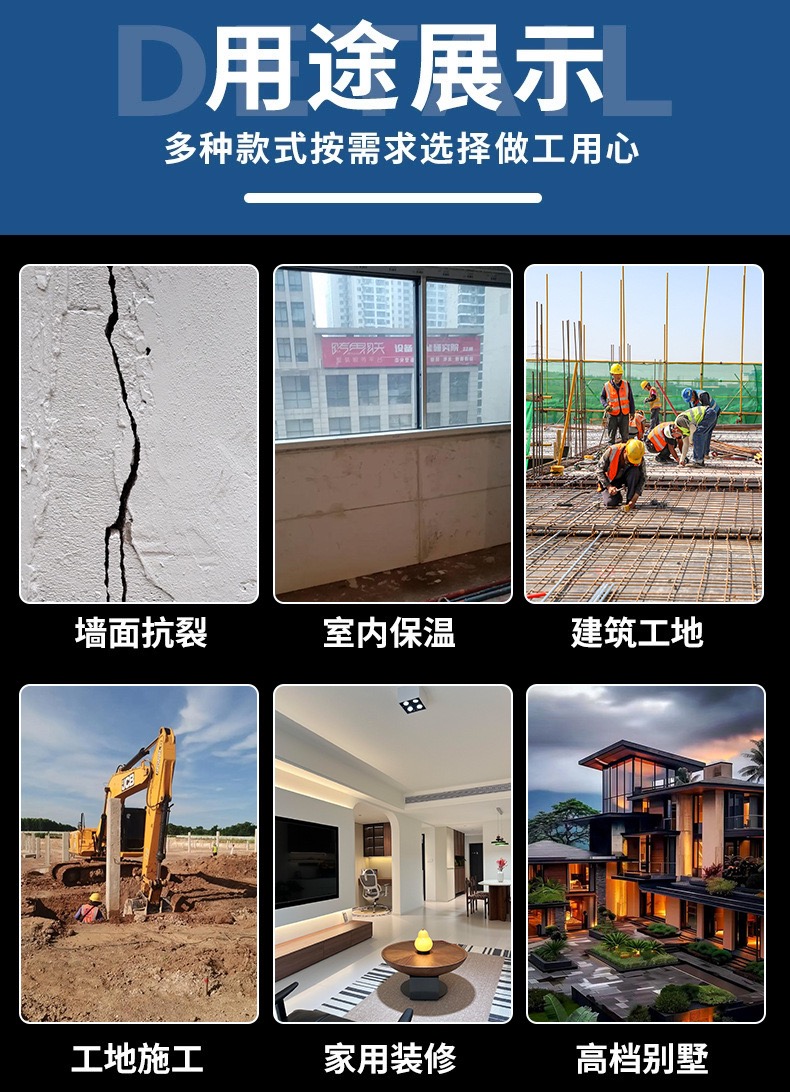

Widely used in the reinforcement and composite of external and internal insulation systems for exterior walls, cement products, asphalt, marble, mosaic, partition boards, gypsum products, and GRC construction materials, it is an ideal engineering material for the building materials industry.



standard specifications

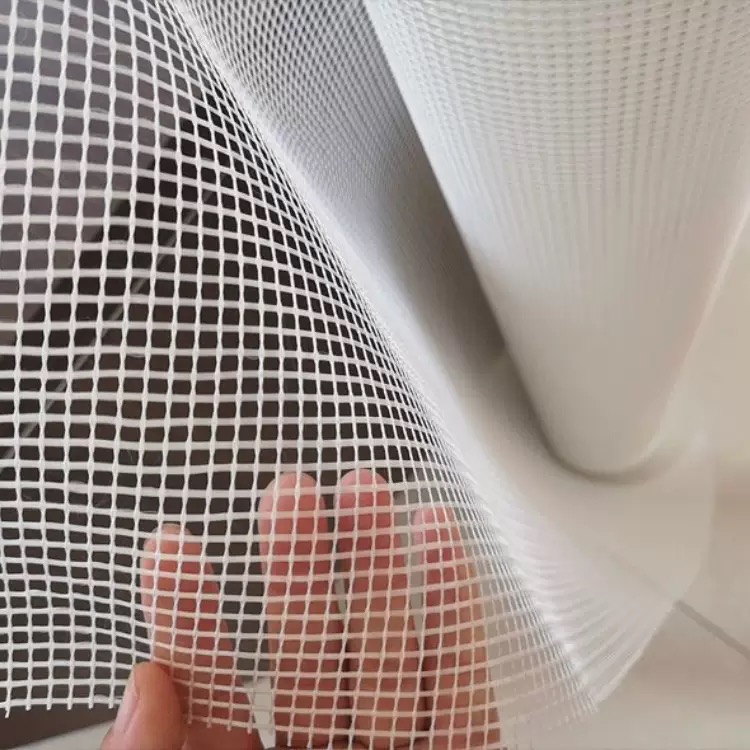

1. Mesh size: 2.54mm * 2.54mm (10 mesh); 2.85mm * 2.85mm (9 mesh); 4mm * 4mm (6 mesh);

5mm * 5mm (5 days); 8mm * 8mm (3 mesh); 10mm * 10mm (2.5 mesh)



2. Weight: 55g/㎡, 60g/m, 70g/m, 80g/m, 90g/m, 100g/m, 110g/m, 120g/m? 、 130g/m?
145g/m、160g/m、170g/m、200g/m? 、 250g/m2、300g/m'



3. Width * length=1m * 50m, 1m * 100m, 1m * 200m4. Color: white (standard), other colors such as blue, green, gray can be customized for production.



execution standard
DG/TJ08-2433A.B-2023     GB/T30595-2014

DG/TJ08-2126-2013         JGJ/T261-2011

DG/TJ08-2088-2018         GB/T29906-2013
